Product Description:
Material Properties
The primary materials used in mainstream products are thermoplastic elastomers (TPE). Additionally, materials such as EPDM (Ethylene Propylene Diene Monomer) rubber and Viton (fluororubber) are available as alternatives upon request. TPE is known for its excellent tensile strength without the need for fabric reinforcement and is manufactured using precision injection molding techniques.
This material combines flexibility, which allows it to accommodate frequent opening and closing actions, with dependable sealing capabilities. Moreover, its cost-effectiveness makes TPE an ideal choice for most industrial dust removal applications. For more demanding environments involving high temperatures or corrosive substances, EPDM and Viton materials provide the necessary resilience and performance.
Certain maintenance kits also include both primary and secondary diaphragms to enhance sealing reliability and ensure consistent operational stability.
Operating Parameter Properties
The product supports an operating pressure compatible with the pulse valve's range of 0.4 to 8 bar. This allows for stable and consistent opening and closing actions, ensuring the pulsed airflow effectively removes dust from filter bags through impactful air shocks.
Temperature resistance is another vital aspect, with the material performing well in medium temperature ranges from -40℃ to +85℃ and ambient temperatures between -20℃ and +85℃. Such adaptability allows it to withstand the temperature fluctuations commonly encountered in industrial environments without becoming brittle or deformed.
Thanks to high-quality TPE material and precise manufacturing processes, the service life can reach up to one million cycles. This longevity significantly lowers the frequency of maintenance and replacement, ultimately enhancing operational efficiency.
Functional and Performance Properties
Functionally, the diaphragm serves as the sole moving component within the pulse valve. Its rapid opening and closing generate shock waves of air that dislodge dust from filter bags, maintaining filtration effectiveness. The component also exhibits excellent flow characteristics, enabling quick response times that contribute to the economical and reliable operation of the pulse valve.
In terms of sealing and protection, TPE provides outstanding sealing performance. When combined with the specialized diaphragm design, gas leakage is effectively prevented. The diaphragm also exhibits a notable resistance to contamination, which helps maintain sealing efficiency despite exposure to impurities.
Some configurations include exhaust structures with threaded interfaces that limit contaminant ingress, indirectly prolonging the diaphragm’s operational lifespan.
Technical Parameters:
| Product Name: |
1268274 Diaphragm Repair Kit |
Suitable Valves: |
2'' 8296700, 2 1/2'' 8296800 |
| Diaphragm Material: |
TPE |
Mounting Hole Size: |
φ6.0mm |
| Diaphragm Outer Diameter: |
φ145.0mm |
Center Distance: |
φ135.5mm |
| Seat Outer Diameter: |
φ68.5mm |
Seat Inner Diameter: |
φ39.0mm |
| Air Hole: |
1 |
Packaging: |
Individual Plastic Bag Sealed |
| Highlight: |
Norgren Diaphragm
,
Norgren Pulse Valve Diaphragm
,
Norgren Membrane
|

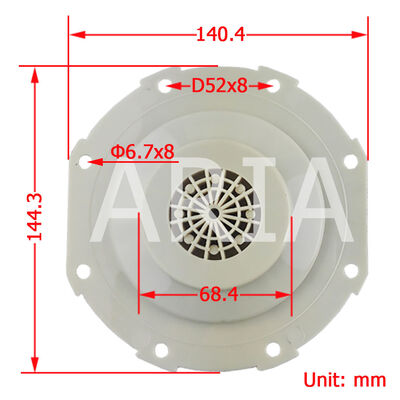

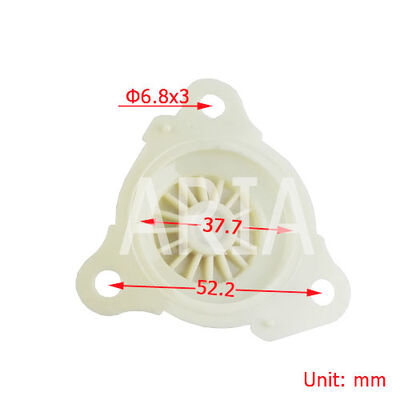

Main dimension of 1268274 Norgren Type Diaphragm Valve Repair Kit:

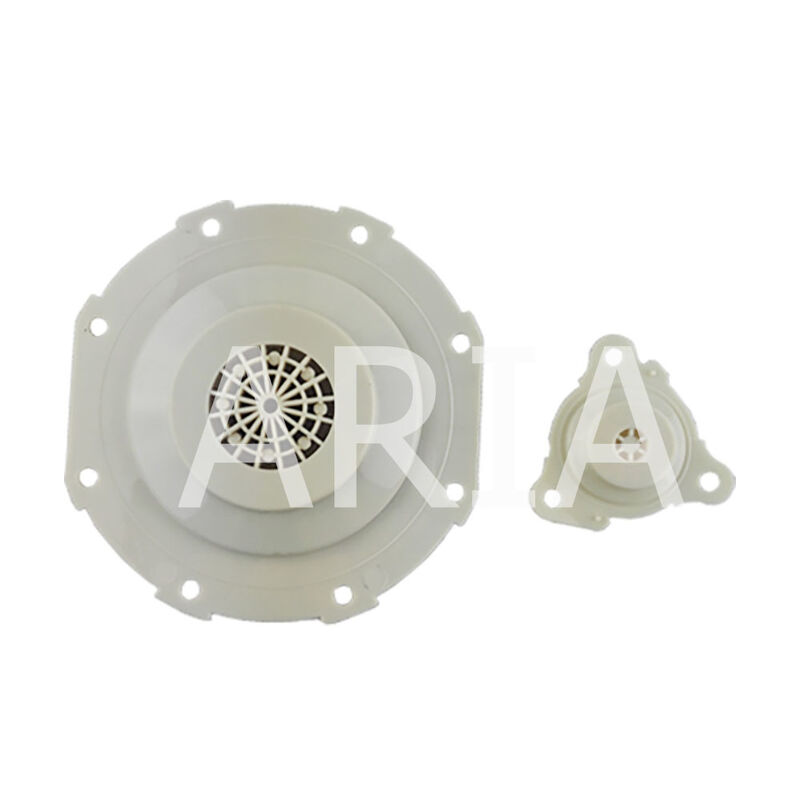

Details of Pulse Valve Diaphragm For Norgren 2'' 8296700 2 1/2'' 8296800:
Available Models of Diaphragm Valve Repair Kits For Norgren Pulse Valves:
Applications:
The Pulse Valve Diaphragm by Taeha is an essential component designed specifically for use in Pulse Jet Valves, widely recognized for its durability and high performance. Crafted from premium NBR (Nitrile Butadiene Rubber), this diaphragm ensures excellent resistance to wear, abrasion, and various chemicals, making it an ideal choice for industrial applications requiring reliable diaphragm repair accessories. Whether you are maintaining or overhauling your pulse valve systems, this diaphragm serves as a crucial part of any diaphragm repair kit, enabling efficient restoration of valve function.
Commonly applied in dust collector systems, air cleaning equipment, and pneumatic control systems, the Pulse Valve Diaphragm is perfectly suited for environments where rapid and frequent valve actuation is necessary. Its 3/4'' size fits standard pulse valve ports, ensuring compatibility with a wide range of pulse jet valve models. This product is CE certified, guaranteeing compliance with international quality and safety standards, which is vital for industries such as cement production, power plants, pharmaceuticals, and food processing where reliable dust filtration and air purification are critical.
The product is packed securely in cartons to prevent damage during transit, and with a supply ability of 5000 pieces per month, Taeha can meet both small and large order demands efficiently. The minimum order quantity is just 1 piece, making it accessible for urgent repairs or small-scale maintenance projects. Delivery time ranges from 1 to 7 workdays after payment confirmation, supporting timely project completion schedules. Payment terms are flexible, accepting T/T, Western Union, and Paypal, providing convenience for international buyers.
In summary, the Taeha Pulse Valve Diaphragm Model 1261253 is an indispensable diaphragm repair accessory that ensures optimal performance and longevity of pulse jet valves. Its robust NBR material, precise sizing, and certified quality make it a reliable component in any diaphragm repair kit. Whether used in industrial dust collectors or pneumatic systems, this diaphragm guarantees efficient and effective pulse valve operation, helping maintain clean air environments and smooth production processes.
Packing and Shipping:
Product Packaging and Shipping for Pulse Valve Diaphragm
The Pulse Valve Diaphragm is carefully packaged to ensure it arrives in perfect condition. Each diaphragm is individually wrapped in protective material to prevent any damage during transit. The wrapped diaphragms are then placed in sturdy, labeled boxes with cushioning to avoid movement and impact.
For bulk orders, the boxes are securely packed into larger cartons or pallets, depending on the quantity, to facilitate safe and efficient shipping. All packages are clearly marked with handling instructions and product details to ensure proper care throughout the shipping process.
We offer various shipping options including standard, expedited, and freight services to meet customer requirements. Tracking information is provided once the shipment is dispatched, allowing customers to monitor their delivery until it reaches their location.
Our packaging and shipping procedures are designed to maintain product integrity and guarantee timely delivery, providing customers with the best possible experience when purchasing the Pulse Valve Diaphragm.
