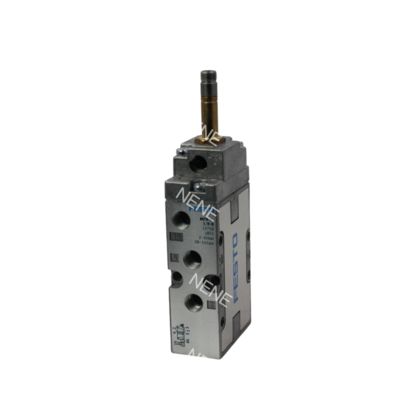

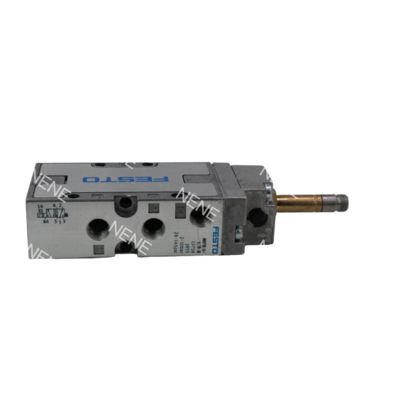

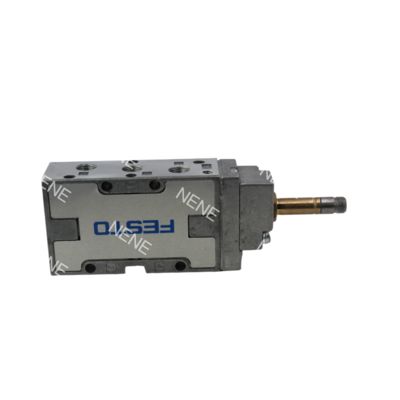

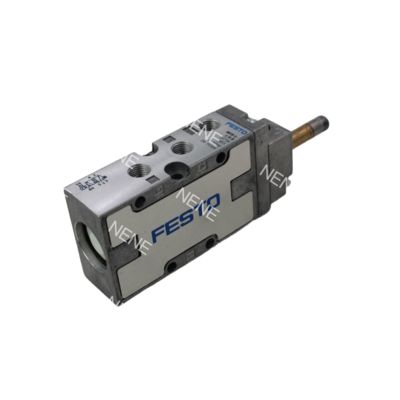

MFH-5-1/8-B Electric Solenoid Valve G1/8 Festo

Product Description:

The FESTO MFH/JMFH series, known in the industry as the "Tiger Valve," is highly regarded for its durable and dependable performance, and represents a classic range of pneumatic solenoid valves. These valves are engineered to deliver high flow rates while maintaining an extremely compact design, making them an excellent choice for a wide range of automation applications.

The MFH series consists of single solenoid valves with spring return (monostable), while the JMFH series comprises double solenoid valves with memory function (bistable). Both series are designed for versatile mounting options, allowing for direct installation via sub-base or easy attachment onto standardized ISO mounting interfaces (such as PAL or PRS systems) for creating modular valve terminal configurations. These valves are the preferred and proven solution for precise control of cylinders, grippers, and other pneumatic actuators.

Features:

Optimized internal flow paths ensure excellent flow characteristics (e.g., Cv values up to ~1.8 or higher) despite the very small build size, enabling fast cylinder cycle times.

Multiple Functions: Available as 5/2-way, 5/3-way, and 3/2-way valves.

Versatile Mounting: Can be installed individually via threaded ports or quickly snapped onto standardized valve manifolds, allowing for easy creation of multi-valve control stations.

Interchangeable Coils: Solenoid coils are available separately in a wide range of voltages (e.g., 24V DC, 110V AC, 230V AC) and types (e.g., standard, low-wattage, manual override), providing great electrical compatibility.

Durable metal body (e.g., aluminum): Ensures longevity and resistance in harsh industrial environments.

High IP65 protection rating: Guards against dust and water jets when used with appropriate connector.

Broad Compatibility: Operates effectively within a standard pressure range of 0.15 MPa to 0.9 MPa (1.5 to 9 bar), suitable for most common pneumatic systems.

Applications:

The MFH/JMFH Tiger Valve series is highly versatile and finds applications in a wide range of industries, owing to its dependable performance and compact design.

In General Factory Automation, these valves are particularly well-suited for use in assembly machinery, material handling equipment, packaging systems, and CNC systems where precise actuator control is necessary.

For Automotive Manufacturing, the MFH/JMFH Tiger Valves are commonly used in welding, clamping, pressing, and testing stations along production lines that require high speeds and reliable operation.

Within the Plastics and Rubber Machinery sector, these valves play a key role in controlling auxiliary functions in injection molding machines, blow moulders, and robotic handlers, contributing to efficient and precise operations.

In the Packaging and Food & Beverage Industry, the MFH/JMFH Tiger Valve series is a suitable choice for controlling actuators in filling, capping, labelling, and sorting machines, although specific material and certification requirements need to be considered based on the application.

Support and Services:

Festo Solenoid Valve product technical support and services include:

- Assistance with installation and setup

- Troubleshooting and diagnostics for any issues

- Guidance on maintenance and servicing

- Information on product specifications and compatibility

- Warranty support and repair services

Packing and Shipping:

Product Packaging:

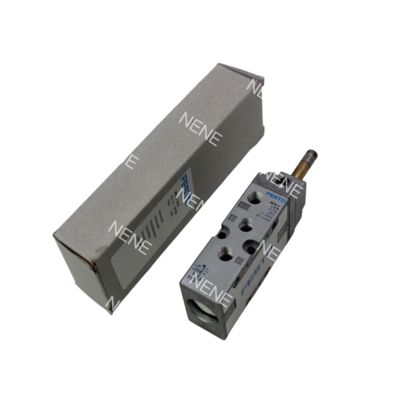

The Festo Solenoid Valve is carefully packaged in a sturdy cardboard box to ensure its protection during transportation. The valve is securely placed within the box and surrounded by protective cushioning material to prevent any damage. Additionally, the packaging includes an instruction manual and any necessary installation accessories.

Shipping:

Orders for the Festo Solenoid Valve are typically shipped using a reliable courier service such as UPS or FedEx. The valve is placed in its original packaging and then placed in a shipping box with additional cushioning material for added protection during transit. Customers will receive a tracking number to monitor the progress of their delivery and can expect their order to arrive within the specified time frame.
