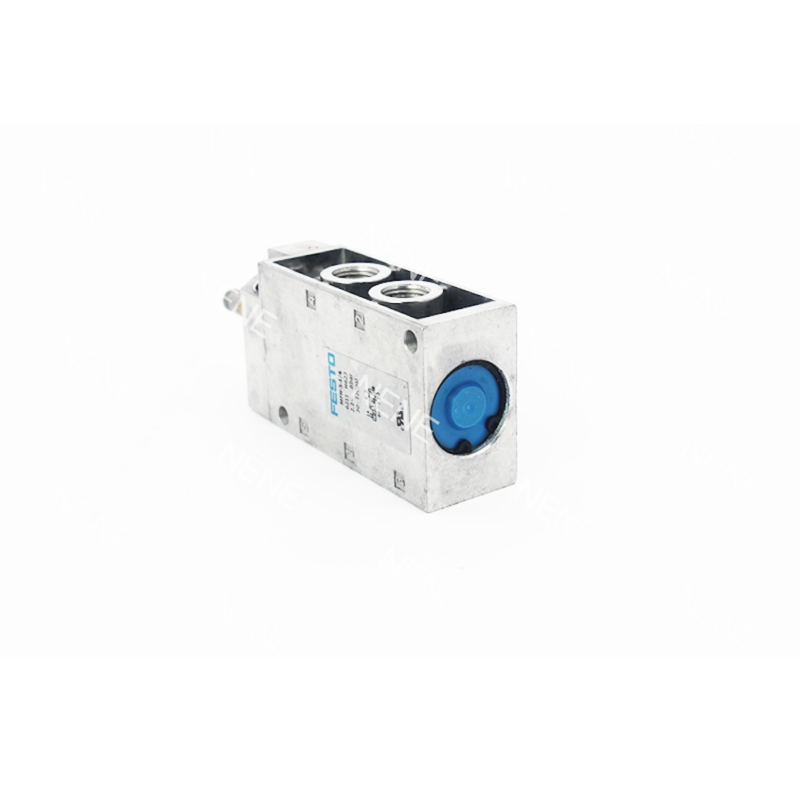

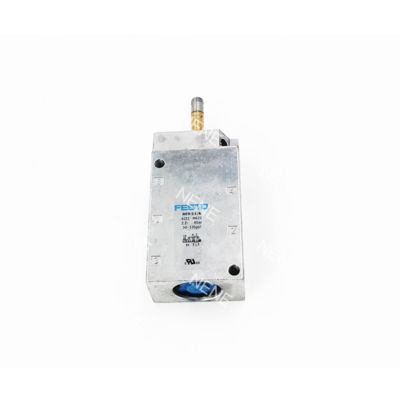

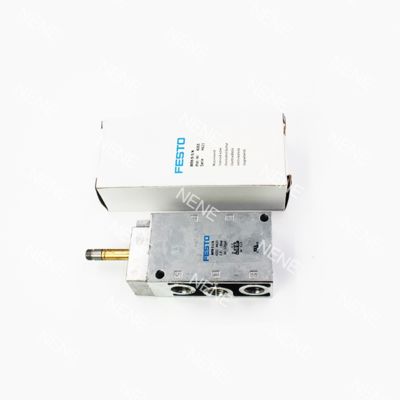

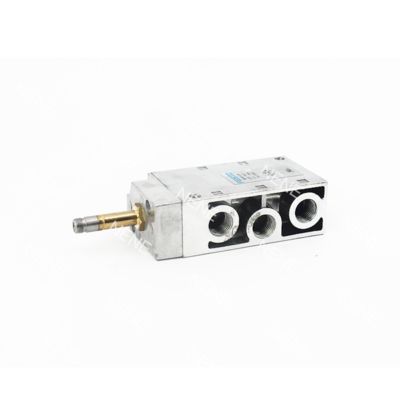

Festo Solenoid Valve MFH-3-1/4-S 7959 With Optional Mounting Position G1/4

Product Description:

The FESTO MFH/JMFH series , known industry-wide as the "Tiger Valve" for its durable and dependable performance, consists of a range of pneumatic solenoid valves. These valves are designed to accommodate high flow rates while maintaining a compact structure, making them an excellent choice for a wide variety of automation tasks.

The MFH series comprises single solenoid valves (monostable) that feature spring return, whereas the JMFH series is composed of double solenoid valves (bistable) with a memory function. Both series are engineered for versatile installation, allowing for direct mounting on sub-bases or easy attachment to standardized ISO mounting interfaces such as PAL or PRS systems for creating modular valve terminal setups. They are the preferred and time-tested solution for managing cylinders, grippers, and other pneumatic actuators.

Features:

High Flow in Compact Design: Optimized internal flow paths ensure excellent flow characteristics (e.g., Cv values up to ~1.8 or higher) despite the very small build size, enabling fast cylinder cycle times.

Exceptional Flexibility & Modularity:

• Multiple Functions: Available as 5/2-way, 5/3-way, and 3/2-way valves.
• Versatile Mounting: Can be installed individually via threaded ports or quickly snapped onto standardized valve manifolds, allowing for easy creation of multi-valve control stations.
• Interchangeable Coils: Solenoid coils are available separately in a wide range of voltages (e.g., 24V DC, 110V AC, 230V AC) and types (e.g., standard, low-wattage, manual override), providing great electrical compatibility.

Robustness and Reliability:

• Durable metal body (e.g., aluminum) ensures longevity and resistance in harsh industrial environments.
• High IP65 protection rating (when used with appropriate connector) guards against dust and water jets.
• Broad Compatibility: Operates effectively within a standard pressure range of 0.15 MPa to 0.9 MPa (1.5 to 9 bar), suitable for most common pneumatic systems.

Applications:

The MFH/JMFH Tiger Valve series is known for its reliability and compact power, making it a versatile solution for various industries:

General Factory Automation: This series is perfect for assembly machines, material handling equipment, packaging machinery, and CNC systems where precise actuator control is essential.

Automotive Manufacturing: The valves are utilized in welding, clamping, pressing, and testing stations along production lines where speed and reliability play a crucial role.

Plastics and Rubber Machinery: They are commonly used to regulate auxiliary functions in injection molding machines, blow molders, and robotic handlers.

Packaging and Food & Beverage Industry: These valves are suitable for controlling actuators in filling, capping, labeling, and sorting machines, provided they meet specific material and certification requirements.

Support and Services:

Festo Solenoid Valve Product Technical Support and Services:

Our team of dedicated technical support experts is available to assist you with any inquiries or issues related to the Festo Solenoid Valve product. Whether you need guidance on installation, troubleshooting, or maintenance, we are here to help.

In addition to technical support, we also offer a range of services to ensure optimal performance and longevity of your Festo Solenoid Valve. These services may include training programs, on-site assistance, and customized solutions tailored to your specific needs.

Packing and Shipping:

Product Name: Festo Solenoid Valve

Description: High-quality solenoid valve manufactured by Festo, known for their reliability and precision engineering.

Package Contents: Solenoid Valve, User Manual

Package Dimensions: 10in x 6in x 4in

Shipping Method: Standard Shipping

Shipping Cost: $10.00
