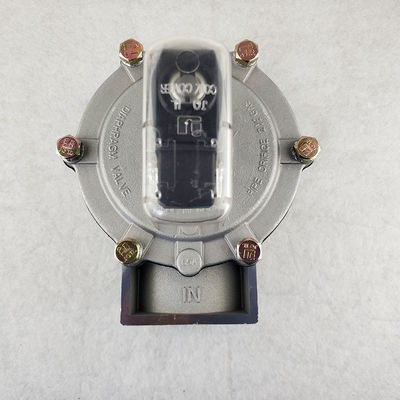

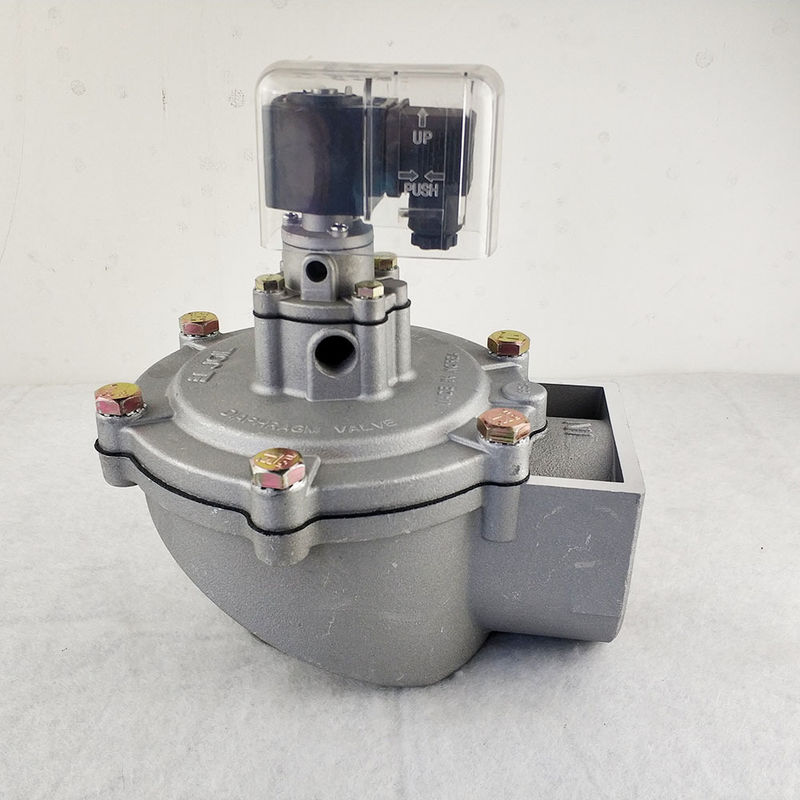

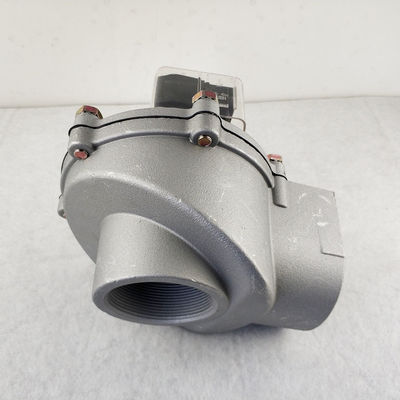

Integrated Korea JISI65 Double Diaphragm Pulse Valves 2.5 Inch Pulse Jet Valves

Product Description:

Structural Design: Features a unique valve core and valve sleeve design, enabling the valve to open quickly with advantages of high flow rate and low pressure loss. Additionally, the diaphragm adopts a special sandwich structure, which enhances the diaphragm’s durability.

Material & Service Life: The valve body is made of precision die-cast aluminum alloy, with its surface treated by anodization and shot peening to adapt to harsh industrial environments. The diaphragm is of high quality and wear-resistant, with a service life usually exceeding 3 million cycles.

Operating Voltage: Standard operating voltages are DC24V and AC220V/50Hz. The coil power for DC24V is 26W; other special voltages can be confirmed by contacting the sales department.

Operating Temperature Range: Possesses heat resistance, acid resistance, and alkali resistance, with a typical operating temperature range of -100°C to 200°C.

Flow Coefficient:
For right-angle pulse valves: The flow coefficient (Cv value) of model JISI-20 is 14.3, JISI-25 is 24.4, JISI-32 reaches 47, and JISI-50 is 97.6.
For submerged pulse valves: For example, the Cv value of model JISI-20-M is 28, JISI-25-M is 42, and JISI-50-M is 108.

Application Scope: Offers a complete range of product specifications, and is widely used in heavy-pollution industries such as metallurgy, cement, electric power, petrochemicals, and aluminum manufacturing.

Protective Performance: Equipped with a rain shield; explosion-proof pulse valve products are also fully available. Mufflers can be installed on demand, and its protection class complies with IP64.

Key Technical Terminology Explanation
Flow Coefficient (Cv Value): A parameter representing the flow capacity of a valve. It refers to the volume (in US gallons per minute) of 60°F (15.6°C) water that can pass through the valve when the pressure difference between the inlet and outlet is 1 psi (0.0069 MPa). A higher Cv value indicates stronger fluid-passing capacity of the valve.
Anodization & Shot Peening:
Anodization: An electrochemical process that forms a dense oxide film on the aluminum alloy surface, improving corrosion resistance and wear resistance.
Shot Peening: A surface strengthening process that bombards the material surface with high-speed small metal shots, enhancing the surface hardness and fatigue resistance of the valve body.
IP64 Protection Class: Defined by the IEC (International Electrotechnical Commission). The first digit "6" means complete protection against dust intrusion; the second digit "4" indicates protection against splashing water from any direction (no harmful impact on the equipment).
Explosion-Proof Pulse Valve: A specialized pulse valve designed for explosive environments (e.g., petrochemical plants with flammable gases/dust). It prevents sparks generated by internal components from igniting external flammable substances, complying with relevant explosion-proof standards (e.g., Ex d IIB T4 Ga).

Technical Parameters:

Applications:

Jiol's Solenoid valve pulse dust removal valve, also known as electromagnetic pulse valve, is a versatile and efficient product suitable for various applications across different industries. Here are some Product Application Occasions and Scenarios where the Pulse Jet Valves can be effectively utilized:

1. Industrial Dust Collection Systems: The electromagnetic pulse valve is ideal for use in industrial dust collectors, helping to efficiently clean the filters and maintain optimal performance in environments such as manufacturing plants, cement production facilities, and woodworking shops.

2. HVAC Systems: The right angle pulse valve can be integrated into HVAC systems for air purification and dust removal, ensuring clean and healthy indoor air quality in commercial buildings, offices, and residential spaces.

3. Material Handling Equipment: Pulse jet valves are essential components in material handling systems, such as pneumatic conveying systems and silo discharge equipment, where they aid in the efficient and continuous removal of dust and debris.

4. Environmental Protection Projects: With its CE certification and high temperature resistance (-25 to +80℃), the electromagnetic pulse valve is well-suited for use in environmental protection projects, including waste incineration plants, air pollution control systems, and wastewater treatment facilities.

5. Manufacturing Processes: The Jiol pulse jet valves can be integrated into various manufacturing processes to help control dust emissions, improve air quality, and enhance overall operational efficiency. Whether in metalworking facilities, food processing plants, or pharmaceutical manufacturing, these valves play a crucial role.

With a minimum order quantity of 1 and flexible pricing options, customers can easily procure the pulse jet valves for their specific needs. The packaging details can be tailored to meet clients' requirements, whether it's standard carton packaging or customized packaging solutions.

Furthermore, Jiol ensures a swift delivery time of 1-7 work days after payment, allowing customers to quickly receive their orders and minimize downtime. Payment terms such as T/T, Western Union, and Paypal offer convenience and flexibility in transactions.

With a robust supply ability of 5000 pieces per month and durable diaphragm materials like NBR and FKM, the Jiol pulse jet valves guarantee reliability, longevity, and high performance in diverse applications. The 3'' inch port size caters to various installation requirements, making it a versatile choice for different setups.

Packing and Shipping:

Product Packaging:

The Pulse Jet Valves are carefully packaged in sturdy cardboard boxes to ensure they arrive safely without any damage during transit. Each valve is securely placed in a protective foam cushion to prevent any impacts.

Shipping:

Once the Pulse Jet Valves are packaged, they are shipped using a reliable courier service. Customers can track their shipment using the provided tracking number to know the exact location and estimated delivery time.
