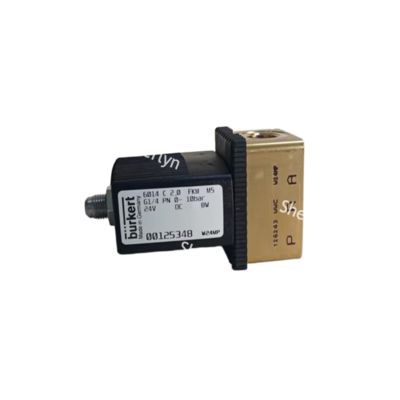

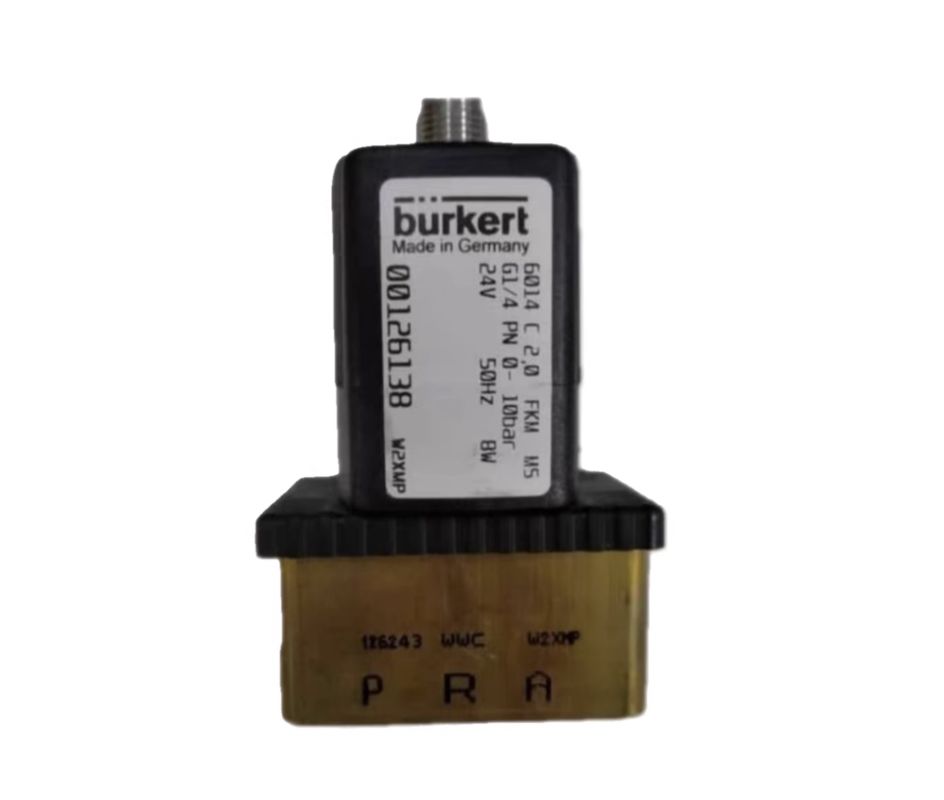

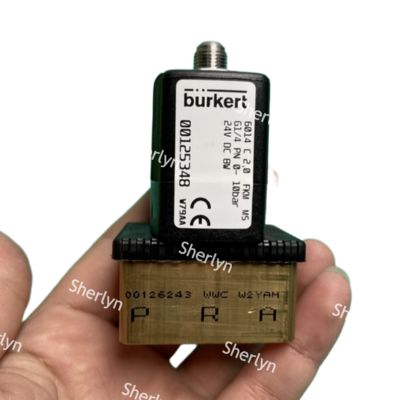

BURKERT 00126138 3/2 WAY SOLENOID VALVE, DIRECT ACTING, 10 BAR, G1/4, BRASS

Product Description:

The Burkert 6014 series solenoid valve is characterized by its compact structure, excellent pressure sealing, shock resistance, energy-saving features (pulse coil), and optional manual operation. The stopper is welded together with the plunger tube, enhancing pressure resistance and sealing performance.

Working principle: The valve operates using a direct acting design where the plunger is directly activated by electromagnetic force to open and close the valve.

Valve function: Primarily a two-position three-way (2/3-way) valve, it offers options such as normally closed (NC), normally open (NO), or universal functions to accommodate various circuit requirements.

Interface size: The valve comes with common threaded interfaces including G ₁/₈", G ₁/₄", and NPT or Rc specifications ranging from 1/8" to 3/8". Additionally, this series supports bottom plate installation (manifold installation) for easy combination and integration, ultimately saving space.

Sealing material: The primary sealing material utilized is FKM (fluororubber) known for its excellent chemical resistance and high-temperature durability.

Applications:

Pneumatic Control
Used to control the direction of action of small cylinders, vacuum suction cups, pneumatic grippers, and other actuating components. The function of its two three-way (2/3-way) is an ideal choice for forming pneumatic circuits, with fast response speed and the ability to meet the rhythm requirements of automation equipment.

Medical and laboratory equipment
Widely used in analytical instruments, diagnostic equipment, ventilators, dental equipment, and various experimental reaction devices, it is used to control the flow of liquid reagents, the on-off or sampling of gases. Its stainless steel material and good sealing meet the requirements for cleanliness and chemical resistance.

Filling and metering system
Suitable for quantitative addition, batching, and filling of small liquids or gases, such as precise control of small flow rates in the food and beverage, chemical industries. The direct acting design provides fast and precise control.

Cooling and lubrication system
In mechanical equipment, it is used to control the on/off of coolant, lubricating oil, or compressed air, providing timely cooling and lubrication for components such as spindles and cutting tools.

Welding equipment
Used to control the pathway of protective gases (such as inert gases) in welding machines to ensure welding quality.

General industrial automation
Commonly used in automation scenarios such as packaging machinery, material sorting, assembly lines, etc., to perform various simple fluid control tasks.

Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 0
