Detailed Product Description
| Product Name: |
Pulse Valve Diaphragm |
Ordering Code: |
C113685, C113686, C113-685, C113-686 |
| Diaphragm Material: |
Nitrile, Viton |
1 Set: |
1x Big Diaphragm, 1x Small Diaphragm, 1x Spring |
| Fitted Pulse Valve Port Size: |
2'', 2 1/2'' |
Fitted Pulse Valve Model: |
SCG353A050, SCG353A051 |
| Highlight: |
2'' C113685 Diaphragm Repair Kit
,
2.5'' C113686 Diaphragm Repair Kit
,
ASCO C113685
|
Product Description:
1-1/2'' C113825 C113-825 NBR Diaphragm For ASCO Pulse Jet Valve
C113825, C1138-25 Diaphragm (Membrane) for ASCO pulse valve G353A045; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃.
Pulse Jet Valve is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems. With its high flow rates, higher peak pressure and the fastest response times on the market it delivers optimal filter cleaning performance, while using significantly less air. This results in energy savings for the user.
Applications:
Industrial Bag-type Dust Removal System
Function: Control compressed air pulse jetting to remove dust accumulation on filter bags.
Industry Cases:
- Cement Plant: Tail-end dust collector (exhaust gas temperature <80°C)
- Steel Plant: Sintering machine head dust removal (requires pre-cooler)
- Wood Processing: Sawdust collection system
Powder Pneumatic Conveying Clearing Blockages
Install pulse valves at blockage points in pipelines to trigger momentary air flow impact using C113825 diaphragms for clearance (e.g., food-grade calcium carbonate, plastic pellet conveying).
Material Silo Arch Breaking Device
Break material arches in coal powder bins/grain silos (operating frequency: ≤30 times/minute).

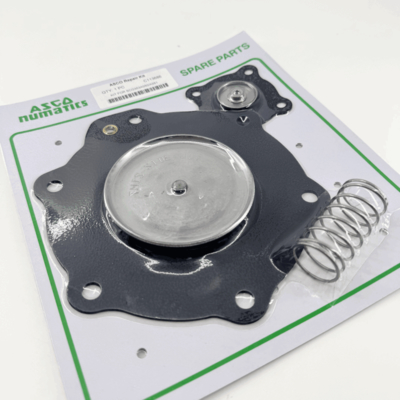

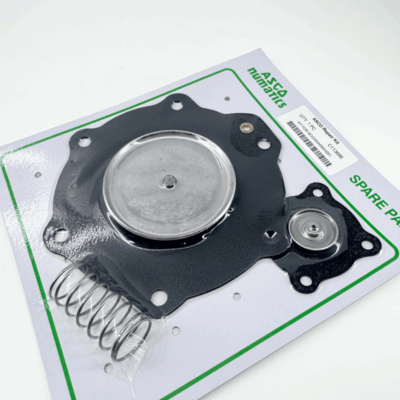

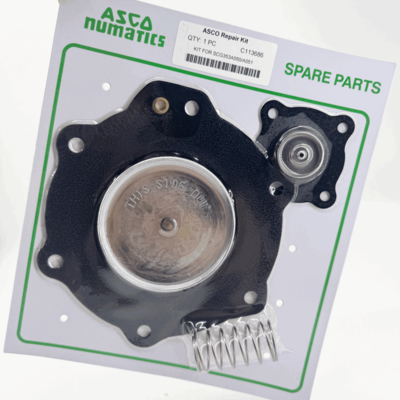

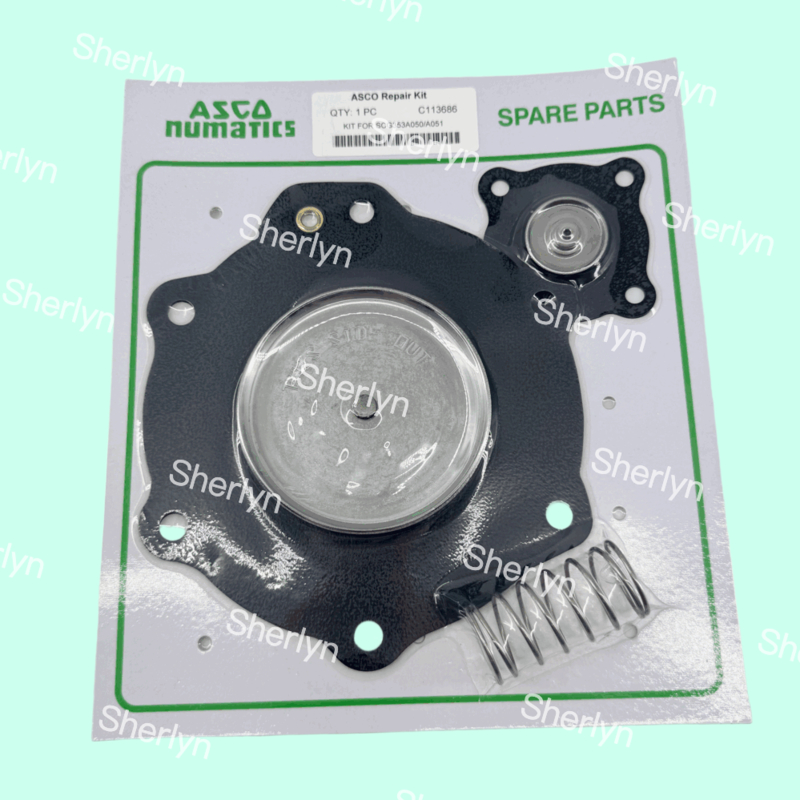

2'' C113685 2.5'' C113686 Diaphragm Repair Kit For SCG353A050 SCG353A051
C113685, C113686, C113-685, C113-686 Diaphragm (Membrane) for ASCO pulse valve SCG353A050, SCG353A051; NBR material is standard, working temperature range is -5 to +80 ℃; VITON material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.
Ordering Number of Diaphragm For ASCO Pulse Valve:
| Valve Port Size |
Pulse Valve Model |
Diaphragm Model |
Diaphragm Material |
| (FKM is also available) |
| 3/4'' |
SCG353A043 |
C113444 |
TPE (White), NBR (Black) |
| 1'' |
SCG353A044 |
| 3/4'' |
SCG353-052 |
| 1'' |
SCG353-053 |
| 3/4'' |
SGG353A043 |
| 1'' |
SGG353A044 |
| 3/4'' |
SGG353-052 |
| 1'' |
SGG353-053 |
| 1 1/2'' |
SCG353A047 |
C113827 |
NBR |
| SGG353A065 |
| 2'' |
SCG353A050 |
C113685, C113686 |
NBR |
| 2 1/2'' |
SCG353A051 |
| 3'' |
SCXE353.060 |
C123432, C123433 |
NBR |
| SCG353D060 |
| 3/4'' |
G3530A41 |
C113443 |
NBR |
| 1'' |
G353A042 |
| 3/4'' |
G353-055 |
| 1'' |
G353-056 |
| 1 1/2'' |
G353A045 |
C113825 |
NBR |
| G353-066 |
| 1 1/2'' |
G353A046 |
C113826 |
NBR |
| G353A063 |
| 2'' |
G353A048 |
C113684 |
NBR |
| 2 1/2'' |
G353A049 |
