Detailed Product Description
| Name: |
C113928 ASCO Type Pulse Valve Diaphragm Repair Kits |
Size: |
For 3''Pulse Valve |
| Material: |
NBR Nitrile |
Suitable Valve Number: |
SCEX353.060 |
| Mounting Hole Size: |
11mm |
Diaphragm Outer Distance: |
190mm |
| Center Distance: |
187mm |
Sealing Gasket: |
Without |
| Highlight: |
ASCO Diaphragm
,
ASCO Pulse Valve Diaphragm
,
ASCO Membrane
|
Product Description:

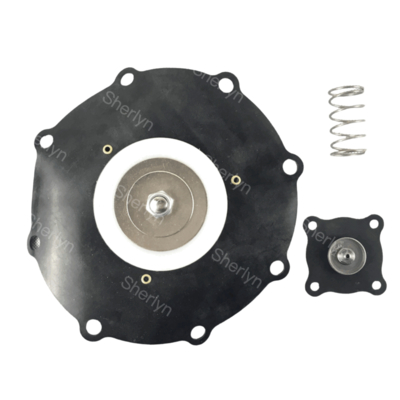

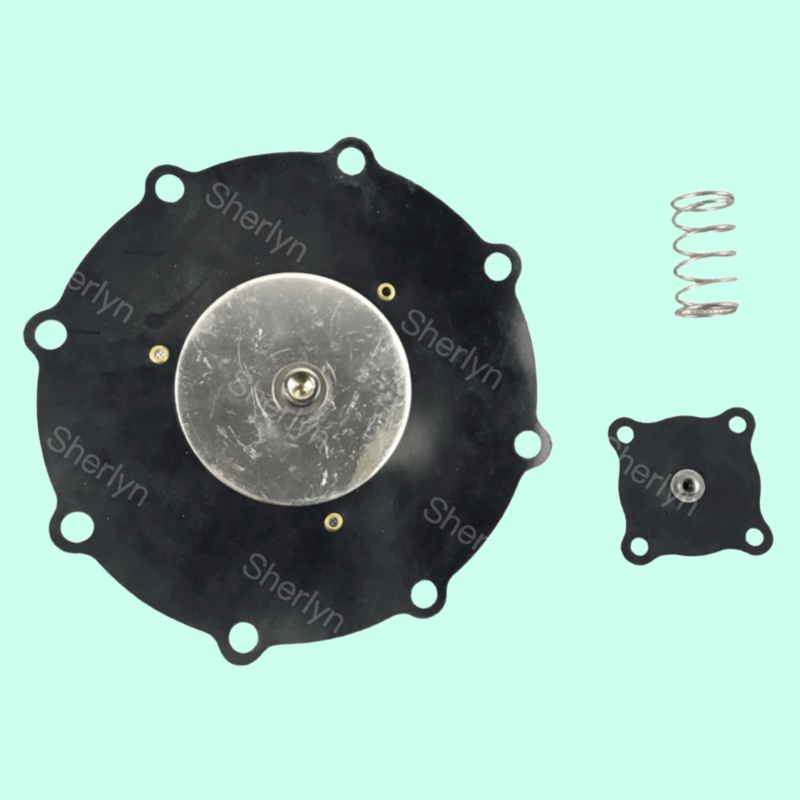

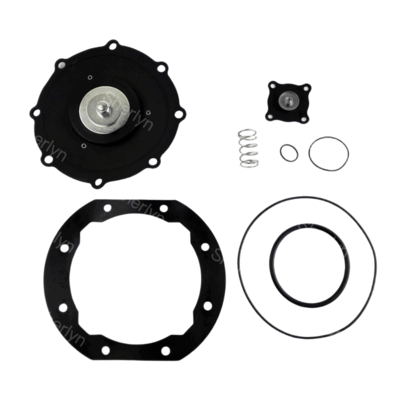

This is ASCO Type C113928 3'' solenoid valve diaphragm repair kits for SCEX353.060 electromagentic pulse jet valve.
Name: C113928 ASCO Type Pulse Valve Diaphragm Repair Kits
Size: For 3''Pulse Valve
Material: NBR Nitrile
Suitable Valve Number: SCEX353.060
Mounting Hole Size: 11mm
Diaphragm Outer Distance: 190mm
Center Distance: 187mm
Sealing Gasket: Without
Applications:
Industrial Bag Dust Removal System
Function: Control compressed air pulse jet to remove dust accumulated on filter bags
Industry Cases:
1. Cement Plant: Baghouse at kiln tail (gas temperature < 80℃)
2. Steel Plant: Dedusting at sintering machine head (requires pre-cooler)
3. Wood Processing: Sawdust collection system
Powder Pneumatic Conveying Anti-Blocking
Install pulse valves at pipeline blockages, triggering instant airflow impact with C113825 diaphragm (e.g., food-grade calcium carbonate, plastic granule conveying)
Material Silo Arch Breaking Device
Application: Break material arch in coal powder silos/grain silos (operating frequency: ≤30 times/minute)
C113928 3''Inch ASCO Type Solenoid Valve Diaphragm for SCEX353.060 Full Immersion Dust Collector Pulse Valve
This is ASCO Type C113928 3'' solenoid valve diaphragm repair kits for SCEX353.060 electromagentic pulse jet valve.
Name: C113928 ASCO Type Pulse Valve Diaphragm Repair Kits
Size: For 3''Pulse Valve
Material: NBR Nitrile
Suitable Valve Number: SCEX353.060
Mounting Hole Size: 11mm
Diaphragm Outer Distance: 190mm
Center Distance: 187mm
Sealing Gasket: Without
| Ordering Code |
Fitted Valve Code |
Valve Port Size |
Material |
| C113443 |
G353A041, G353A042 |
3/4'', 1'' |
TPU/NBR |
| C113444 |
SCG353A043, SCG353A044, |
3/4'', 1'' |
| SCG353-052, SCG353-053 |
| C113825 |
G353A045 |
1-1/2'' |
NBR |
| C113826 |
G353A046 |
1-1/2'' |
| C113827 |
SCG353A047, SCG353A065 |
1-1/2'' |
| C113685 |
SCG353A050, SCG353A051 |
2'', 2-1/2'' |
| C113686 |
| C113928 |
SCEX353.060 |
3'' |
| C123432 |
SCG353D060, G353.060 |
| C123433 |
| K096875 (K238864) |
8353C033 |
3/4'' |
| K200262 (K238866) |
G353A041, G353A042, SCG353A043, |
|
| SCG353A044, SCG353-052, SCG353-053 |
1'' |
| K276886 (K238870) |
G353A045, G353A046, |
1-1/2'' |
| K276886B |
SCG353A047, SCG353A065 |
| K276887 |
|
Viton |
| Tips: EPDM, FKM All Available. |
Support and Services:
Our Product Technical Support and Services for the Pulse Valve Diaphragm include:
- Comprehensive troubleshooting guidance for any issues related to the product
- Installation assistance and best practices recommendations
- Regular maintenance tips to ensure optimal performance
- Product training and resources to help users maximize the functionality of the pulse valve diaphragm
- Warranty support and repair services for any manufacturing defects or malfunctions
Packing and Shipping:
Product: Pulse Valve Diaphragm
Description: High-quality replacement diaphragm for pulse valves, made from durable and flexible materials.
Packaging: The pulse valve diaphragm is carefully packed in a sturdy cardboard box to ensure safe delivery.
Shipping: We offer worldwide shipping with fast and reliable delivery options. Your order will be shipped within 1-2 business days.
