Product Description:
Pulse Jet Valve: Pulse Jet valve is a type of valve that converts a continuous input signal into a pulsed signal through the delay in gas flow caused by gas resistance and gas capacity. The internal design of the air inlet for the right angle pulse jet valve, along with the installation and utilization of the positioning steel ring, helps prevent loosening from inertial impact and ensures precise installation positioning.
Moreover, even after prolonged usage, the stainless steel nut still facilitates easy disassembly and reassembly for maintenance purposes. This feature ensures the continued convenience and efficiency of maintenance operations for the pulse jet valve system.
Applications:
Bag Filter Pulse Cleaning System
Function: Control the instantaneous injection of compressed air into the filter bag to remove surface dust.
Applicable Equipment:
- Cement plant rotary kiln dust collector
- Steel plant blast furnace gas purification system
- Bag dust removal device for coal-fired power plants
- Dust collection system for chemical/pharmaceutical industry
- Material conveying and pneumatic conveying system
Used for pulse airflow dredging when pipelines are blocked (such as grain and fly ash conveying pipelines).

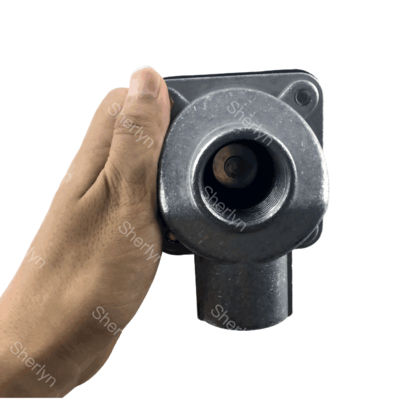

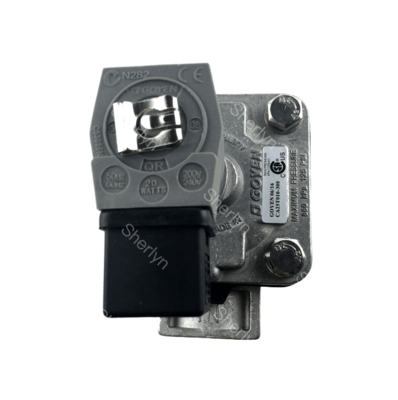

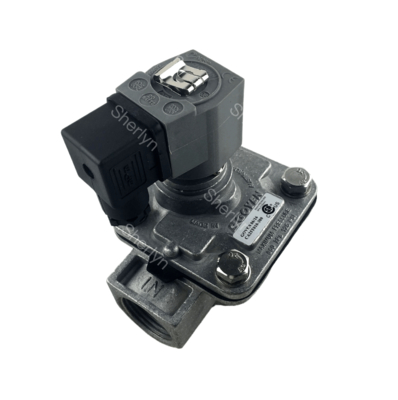

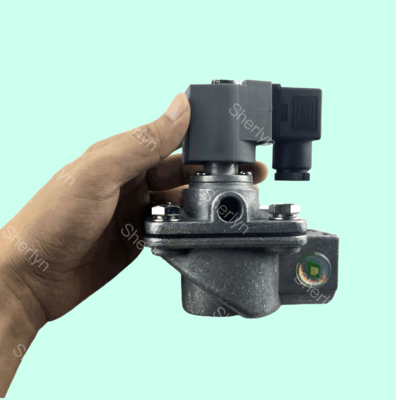

CA25T 1" Dust Collector Pulse Jet Valve 12V 24V DC 110V 220V AC
Right Angle threaded solenoid pulse valve is constructed with aluminum alloy body suitable for dust collection applications, in particular for cleaning bag filters.We have three types right angle type with dresser nut DD & manifold mount type MM & Flanged type FS, with different connection form. It is 2-way dust collector valve used for pulsing large volumes of air into filter bags for removal.
Order Code Example:
CA25T
CA:The Pilot Type is Integral Pilot .
25:Valve Size is 25mm, Port Size is G1 Inch .
| Model No |
CA15T |
CA20T |
CA25T |
CA35T |
CA45T |
CA50T |
CA62T |
CA76T |
| Office Size |
15 |
20 |
25 |
35 |
45 |
50 |
62 |
76 |
| (mm) |
| Port Size |
1/2'' |
3/4'' |
1'' |
1 1/2'' |
1 1/2'' |
2'' |
2 1/2'' |
3'' |
| (Inch) |
| Diaphragm Number |
1 |
2 |
| Working pressure |
0.35 to 0.85 MPa (5 to 125 PSI) |
| Voltage |
24VDC, 24VAC, 110VAC, 220VAC |
| Diaphragm Material |
NBR, FKM, EPDM |
| Body Material |
Aluminum Alloy |
| Valve Structure |
Right Angle (Outlet is at 90° to Inlet), Threaded Port |
Support and Services:
The Product Technical Support and Services for the Pulse Jet Valves product include maintenance, troubleshooting, and repair assistance. Our team of experts is available to provide guidance on installation, operation, and optimization of the valves to ensure optimal performance. Additionally, we offer training programs to educate users on the proper use and maintenance of the product. Our technical support services aim to address any issues or questions that customers may have, helping them maximize the efficiency and longevity of their Pulse Jet Valves.
Packing and Shipping:
Product Packaging and Shipping for Pulse Jet Valves:
The Pulse Jet Valves will be carefully packaged to ensure they arrive at your doorstep safely and in perfect condition. Each valve will be securely placed in individual boxes with adequate padding to prevent any damage during transit.
For shipping, we partner with reliable courier services to guarantee timely delivery. You can track your package and know exactly when to expect your Pulse Jet Valves. We strive to provide a seamless shipping experience for our customers.
