Product Description:
Pulse Jet Valve: A pulse jet valve is a type of valve that transforms a continuous input signal into a pulsed signal through the delay created by the flow of gas passing through gas resistance and gas capacitance.

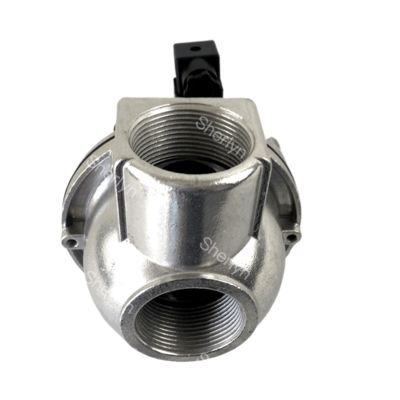

Inner Structure: The internal design of the air inlet of the right angle pulse jet valve and the incorporation and usage of the positioning steel ring help prevent loosening caused by inertial impacts. Simultaneously, they ensure precise installation positioning.
Longevity and Convenience: Even after prolonged use, the stainless steel nut on the valve can still guarantee effortless disassembly and reassembly, maintaining user-friendliness.
Applications:
Bag Filter Pulse Cleaning System
Function: The bag filter pulse cleaning system is designed to control the rapid injection of compressed air into the filter bags in order to effectively remove surface dust.
Applicable Equipment:
- Cement plant rotary kiln dust collector
- Steel plant blast furnace gas purification system
- Bag dust removal device for coal-fired power plants
- Dust collection system for chemical/pharmaceutical industry
- Material conveying and pneumatic conveying system
This system is especially useful for pulse airflow dredging in situations where pipelines are blocked, such as in grain and fly ash conveying pipelines.
Specification of T Series Pulse Jet Valves:
| Model No |
CA15T |
CA20T |
CA25T |
CA35T |
CA45T |
CA50T |
CA62T |
CA76T |
| Office Size |
15 |
20 |
25 |
35 |
45 |
50 |
62 |
76 |
| (mm) |
| Port Size |
1/2'' |
3/4'' |
1'' |
1 1/2'' |
1 1/2'' |
2'' |
2 1/2'' |
3'' |
| (Inch) |
| Diaphragm Number |
1 |
2 |
| Working pressure |
0.35 to 0.85 MPa (5 to 125 PSI) |
| Voltage |
24VDC, 24VAC, 110VAC, 220VAC |
| Diaphragm Material |
NBR, FKM, EPDM |
| Body Material |
Aluminum Alloy |
| Valve Structure |

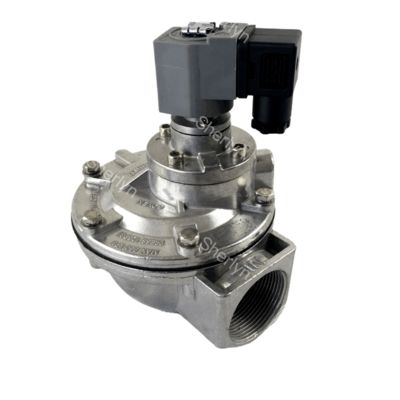

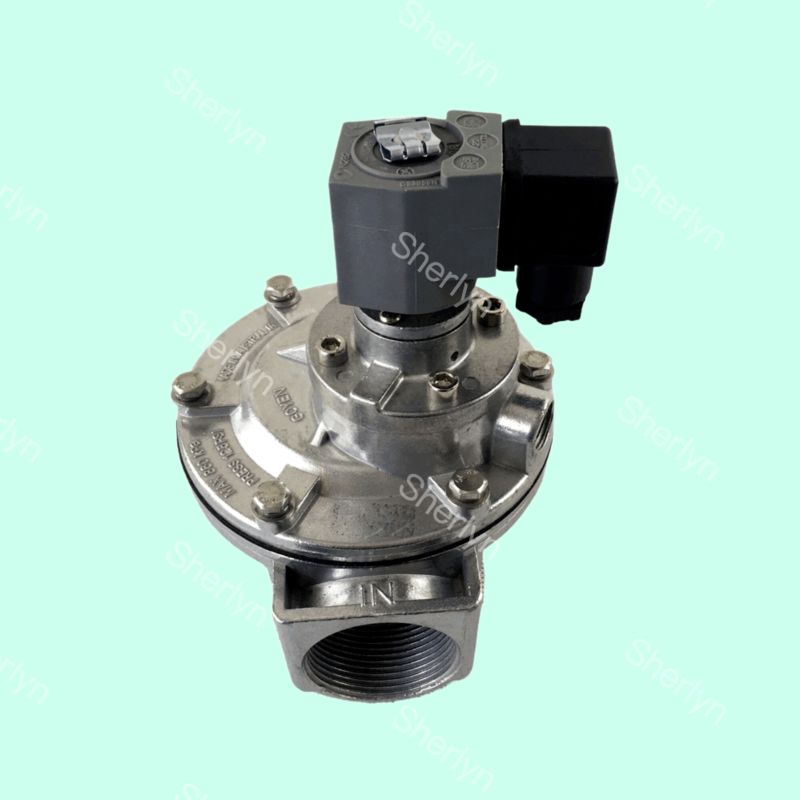

Right Angle (Outlet is at 90° to Inlet), Threaded Port |
Support and Services:
Our Product Technical Support and Services for the Pulse Jet Valves product are designed to ensure optimal performance and reliability. Our team of experts is available to provide assistance with installation, troubleshooting, and maintenance to help you get the most out of your equipment.
Additionally, we offer training programs to help you and your staff better understand the operation and maintenance of our Pulse Jet Valves. Our goal is to support you every step of the way to ensure that your equipment continues to perform at its best.
Packing and Shipping:
Product Packaging:
The Pulse Jet Valves are carefully packaged in sturdy cardboard boxes to ensure safe transportation. Each valve is securely placed in a foam cushion to prevent any damage during shipping.
Shipping:
Once your order is placed, the Pulse Jet Valves will be shipped out within 1-2 business days. We partner with reliable shipping carriers to deliver your valves safely and on time. You will receive a tracking number to monitor the delivery status of your order.
