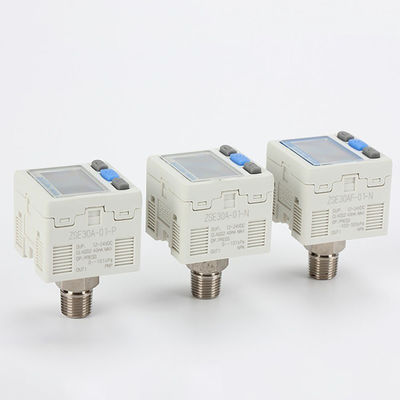

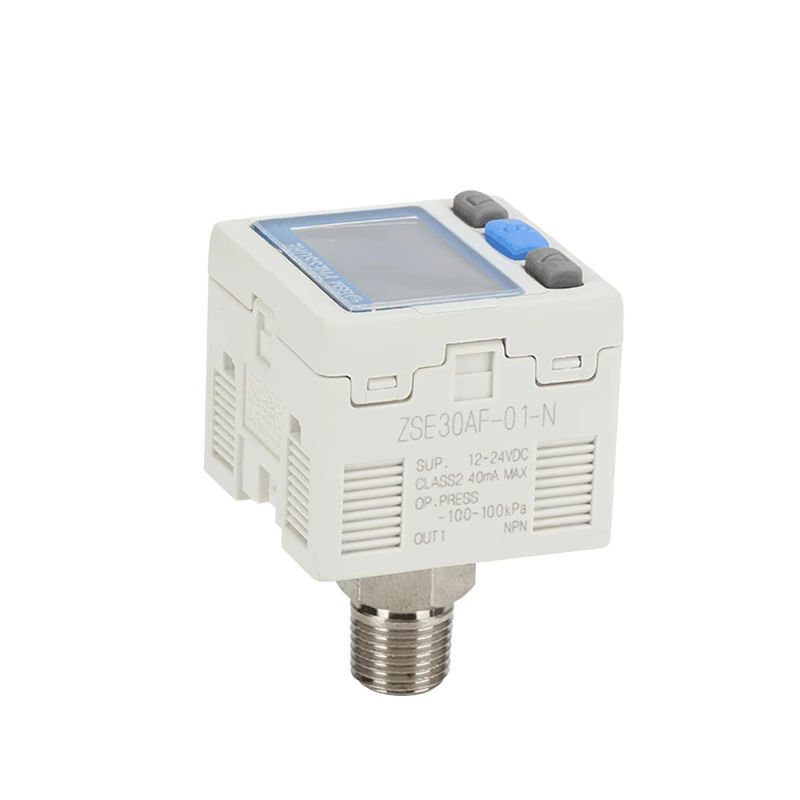

ZSE30AF-01-A SMC type vacuum negative pressure gauge ZSE30AF-01-N/P/C/D-L

Product Description:

SMC digital pressure gauges are available in multiple series, each of which varies in measurement range, functional configurations, and installation methods. Some common series include:

Features: Basic digital gauge with analog output, providing high cost-effectiveness.

Application: Ideal for pressure monitoring in general pneumatic systems.

Features: Accuracy up to ±0.5%FS, supports digital communication (e.g., RS-485), and some models equipped with USB interfaces.

Application: Suitable for precision control and laboratory calibration purposes.

Features: Specifically designed for negative pressure measurement (vacuum degree), offering fast response times, and suitable for applications like suction cups and vacuum generators.

Features: Provides support for multi-stage alarms, peak hold function, data logging capabilities, and graphical displays (e.g., trend curves).

Application: Ideal for pressure monitoring and data analysis in complex systems.

• ISE Series (Economical Type)
• PSE Series (High-Precision Type)
• ZSE Series (Vacuum Type)
• ISE30/50 Series (Intelligent Type)



Technical Parameters:

Technical Parameter	Specification
Interface Type	Rc, NPT, G Threads, Et
Measurement Range	-100kPa ~ 0 ~ 60MPa (optional Per Model)
Power Supply	DC 12-24V, AC 100-240V (optional)
Sampling Frequency	50ms ~ 1s
Display Accuracy	±1%FS, ±0.5%FS
Operating Temperature	-10℃ ~ 60℃ (some Models Support Wide Temperature Ranges)
Protection Level	IP40, IP65 (waterproof And Dustproof Types)

Applications:

Measurement Range: It is important to select the appropriate measurement range to prevent damage caused by exceeding the limit. Always choose based on the actual pressure range being measured.

Accuracy Requirements: For industrial applications, aim for an accuracy of ±1%FS. In precision situations, opt for ±0.5%FS or higher accuracy levels to ensure precise measurements.

Output Signals: Select between analog and digital output signals based on the specific needs of the control system being utilized.

Environmental Adaptability: When choosing pressure sensors, take into account environmental factors such as temperature, humidity, and vibration. Ensure that the selected model offers the appropriate protection levels for the given conditions.

Installation Method: Match the equipment interfaces, such as thread types, and the available installation space to ensure a proper fit and functioning of the pressure sensor.
