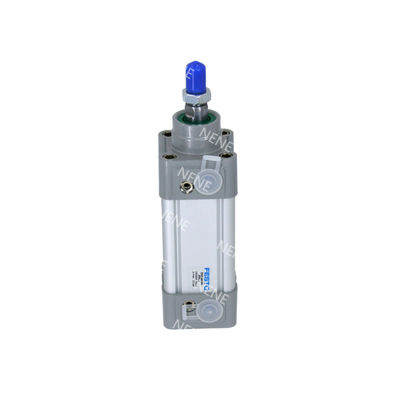

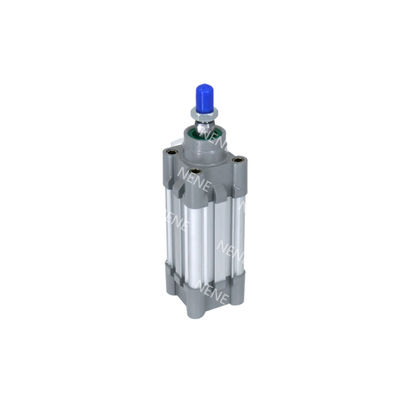

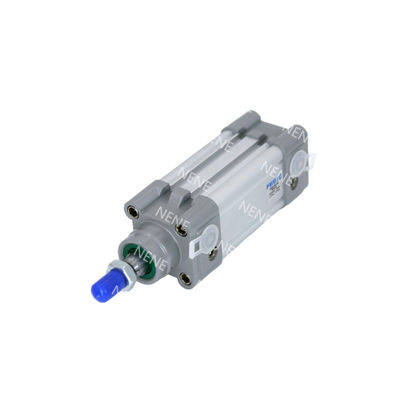

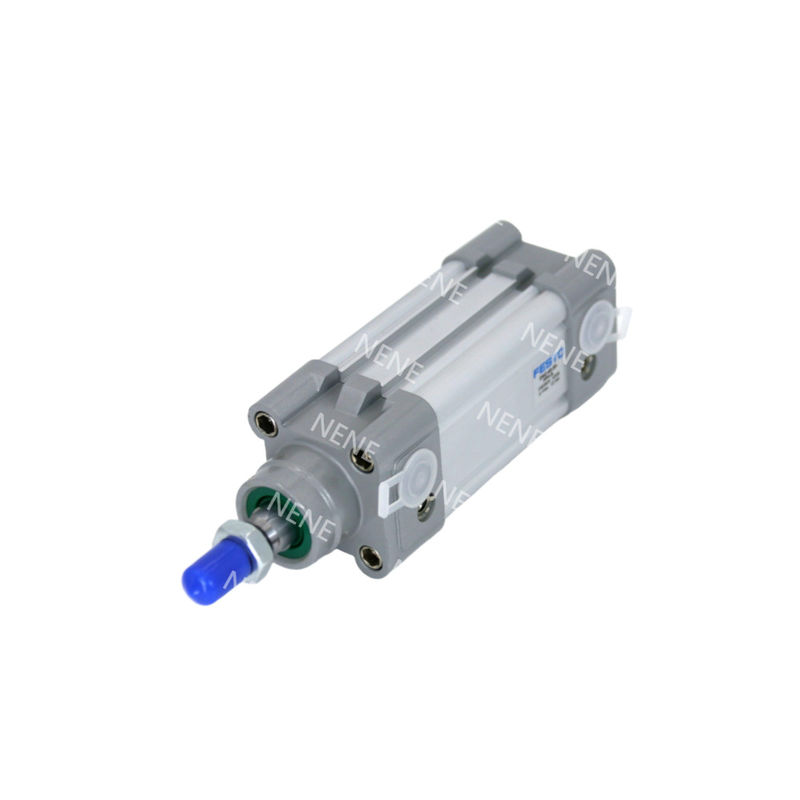

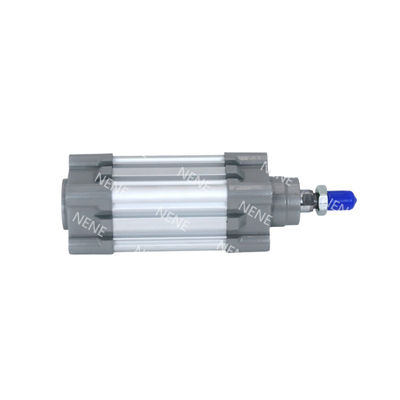

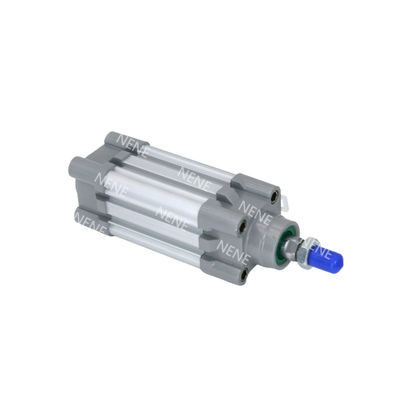

Name: Stroke 25 mM FESTO DNC-40-25-PPV-A 163337 Pneumatic Cushioning Automation Cylinder Piston Diameter 40 Mm
Brand: YW DKE TRADING COMPANY
SKU: DNC-40-25-PPV-A 163337
Availability: InStock

Inicio Productos Cilindro neumático del pistón

Stroke 25 mM FESTO DNC-40-25-PPV-A 163337 Pneumatic Cushioning Automation Cylinder Piston Diameter 40 Mm

Datos del producto:

Place of Origin:	China
Nombre de la marca:	FESTO
Certificación:	CE
Model Number:	DNC-40-25-PPV-A 163337

Pago y Envío Términos:

Minimum Order Quantity:	1
Precio:	Negociable
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 Pieces/1Month

Contacto

Descripción detallada del producto

Operating pressure:	0.06 MPa ... 1.2 MPa	Ambient temperature:	-20 °C ... 80 °C
Media:	Compressed Air	Operation:	Double Acting
Cushioning:	Pneumatic Cushioning	Piston-rod end:	Male Thread

Product Description:

Compact design: saves 11% installation space compared to traditional cylinders, suitable for systems with compact structures.

Profile cylinder: Three sided slotted design for easy integration of proximity sensors (such as magnetic switches), supporting non-contact position detection.

Buffer configuration:

The standard model uses elastic buffering (P-type) at both ends.
Adjustable air buffer (PPV type), suitable for high-speed or high load scenarios, with a buffer length of 20-32 mm.

Piston rod design:

Male thread or special thread (such as square piston rod anti-torsion, extended thread, etc.).

Optional types:

Double output piston rod
Hollow piston rod
With clamping unit (KP type), etc.

Technical Parameters:

Cushioning	Pneumatic Cushioning
Operation	Double Acting
Piston-rod end	Male Thread
Media	Compressed Air
Ambient temperature	-20 °C ... 80 °C
Operating pressure	0.06 MPa ... 1.2 MPa

DNC-32-25-PPV-A	163305	DNC-40-25-PPV-A	163337	DNC-50-25-PPV-A	163369	DNC-63-25-PPV-A	163401
DNC-32-40-PPV-A	163306	DNC-40-40-PPV-A	163338	DNC-50-40-PPV-A	163370	DNC-63-40-PPV-A	163402
DNC-32-50-PPV-A	163307	DNC-40-50-PPV-A	163339	DNC-50-50-PPV-A	163371	DNC-63-50-PPV-A	163403
DNC-32-80-PPV-A	163308	DNC-40-80-PPV-A	163340	DNC-50-80-PPV-A	163372	DNC-63-80-PPV-A	163404
DNC-32-100-PPV-A	163309	DNC-40-100-PPV-A	163341	DNC-50-100-PPV-A	163373	DNC-63-100-PPV-A	163405
DNC-32-125-PPV-A	163310	DNC-40-125-PPV-A	163342	DNC-50-125-PPV-A	163374	DNC-63-125-PPV-A	163406
DNC-32-160-PPV-A	163311	DNC-40-160-PPV-A	163343	DNC-50-160-PPV-A	163375	DNC-63-160-PPV-A	163407
DNC-32-200-PPV-A	163312	DNC-40-200-PPV-A	163344	DNC-50-200-PPV-A	163376	DNC-63-200-PPV-A	163408
DNC-32-250-PPV-A	163313	DNC-40-250-PPV-A	163345	DNC-50-250-PPV-A	163377	DNC-63-250-PPV-A	163409
DNC-32-320-PPV-A	163314	DNC-40-320-PPV-A	163346	DNC-50-320-PPV-A	163378	DNC-63-320-PPV-A	163410
DNC-32-400-PPV-A	163315	DNC-40-400-PPV-A	163347	DNC-50-400-PPV-A	163379	DNC-63-400-PPV-A	163411
DNC-32-500-PPV-A	163316	DNC-40-500-PPV-A	163348	DNC-50-500-PPV-A	163380	DNC-63-500-PPV-A	163412
DNC-80-25-PPV-A	163433	DNC-100-25-PPV-A	163465	DNC-125-25-PPV-A	163497
DNC-80-40-PPV-A	163434	DNC-100-40-PPV-A	163466	DNC-125-40-PPV-A	163498
DNC-80-50-PPV-A	163435	DNC-100-50-PPV-A	163467	DNC-125-50-PPV-A	163499
DNC-80-80-PPV-A	163436	DNC-100-80-PPV-A	163468	DNC-125-80-PPV-A	163500
DNC-80-100-PPV-A	163437	DNC-100-100-PPV-A	163469	DNC-125-100-PPV-A	163501
DNC-80-125-PPV-A	163438	DNC-100-125-PPV-A	163470	DNC-125-125-PPV-A	163502
DNC-80-160-PPV-A	163439	DNC-100-160-PPV-A	163471	DNC-125-160-PPV-A	163503
DNC-80-200-PPV-A	163440	DNC-100-200-PPV-A	163472	DNC-125-200-PPV-A	163504
DNC-80-250-PPV-A	163441	DNC-100-250-PPV-A	163473	DNC-125-250-PPV-A	163505
DNC-80-320-PPV-A	163442	DNC-100-320-PPV-A	163474	DNC-125-320-PPV-A	163506
DNC-80-400-PPV-A	163443	DNC-100-400-PPV-A	163475	DNC-125-400-PPV-A	163507
DNC-80-500-PPV-A	163444	DNC-100-500-PPV-A	163476	DNC-125-500-PPV-A	163508

Applications:

Application Area:

General Industry: Applications in general industry include automatic drilling machines, packaging machinery, material handling systems, and more.

Harsh Environment: This category involves scenarios that demand high reliability, such as steel mills, textile assembly lines, and marine equipment.

Safety System: Designed to meet standards like EN 954-1, EN 1050, and other relevant regulations, these systems are utilized for safety-related control systems.
